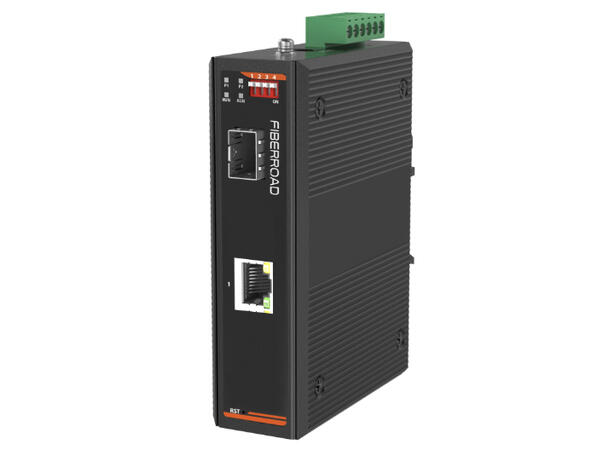

Gigabit Web Smart Industrial Media Converter
Web Smart Industrial Media Converter is an IEEE 802.3ah compliant copper to fiber Gigabit Ethernet solution designed to convert between 10/100/1000Base-T and 100/1000Base-X with SFP modules. With SNMP and Web-based management in the standalone type or play as a remote unit, communicate with the GF-IMC-RJ45-SFP-MNGT Platform to realize centralized management. The administrator can monitor, configure and control the activity of each unit and remotely connected OAM-compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, as well as VLAN tagging and SFP DDMI. When used as stand-alone converters, the GF-IMC-RJ45-SFP-MNGT can be managed by a friendly Web Smart user interface via any web browser.

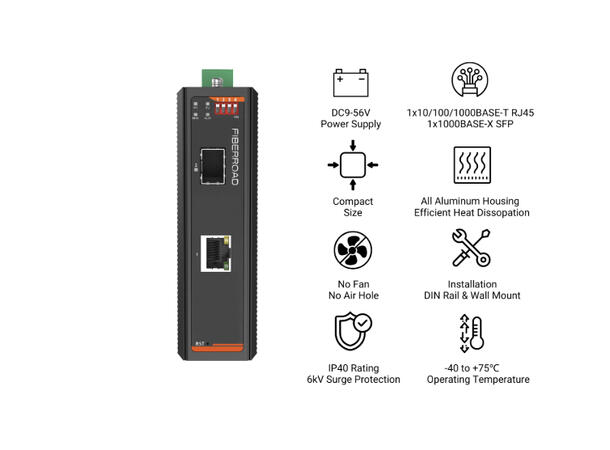

Product Features
- 1×10/100/1000Base-T to 1000Base-X SFP Converter
- Auto-Cross over for MDI/MDIX in TP port
- Auto-Negotiation or manual mode in TP port
- Industrial Grade Standard, -40 to +75C operating temperature, IP40 Rating
- Supports flow control, enable or Disable
- Supports Jumbo Frame 9K Packet
- Ingress/Egress bandwidth control
- Supports in-band IEEE802.3ah management
- Firmware upgrade via Web
- Dying gasp (Remote power failure detection on standalone)
- Supports Link Fault Pass-Through(LFPT)Function
- Support Auto Laser Shutdown(ALS) Function
- Support SNMP, Web Management
- Maximum Packet Length: Up to 9K
- Forward Filter Rate: 14,880pps(10Mbps), 148,800pps(100Mbps), 1,488,000pps(1000Mbps)
- Transmission Mode Store and Forward:(full/half duplex mode)
- Reset Button: <5 sec: System Reboot; >10 sec: Factory Default
- Enclosure: IP40 aluminum case

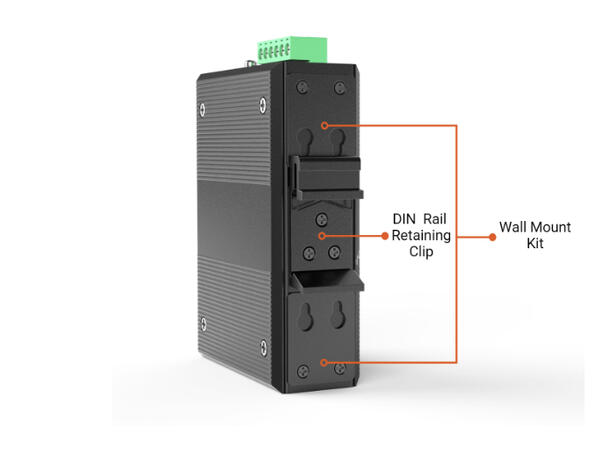

- Installation DIN-rail and Wall-mount

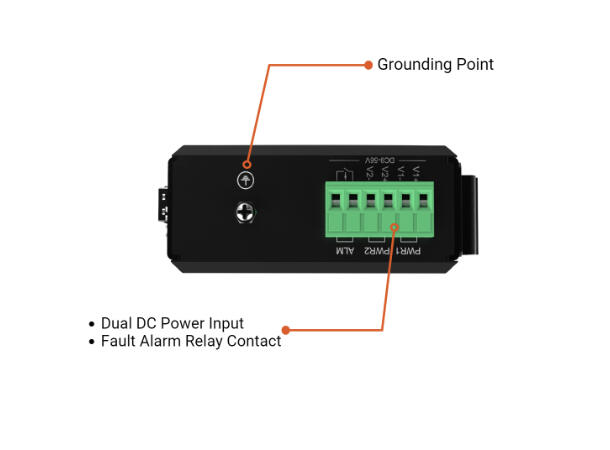

- Input Voltage DC9-56V
- Operating Temperature: -40~75C
- Dimension: 120x90x35mm
