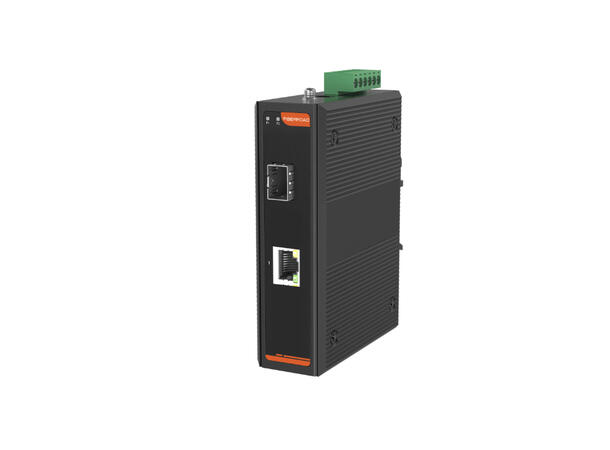

Industrial 10/100/1000BASE-T to 1000BASE-X SFP Media Converter
This Industrial 10/100/1000BASE-T to 1000BASE-X SFP Media Converter is designed to withstand extreme conditions, operating reliably in temperatures ranging from -40°C to +75°C (-40 to 167°F) and humidity levels of 5% to 95% (non-condensing). Built for demanding industrial applications, it ensures seamless conversion between copper and fiber networks while offering ±6kV power supply surge protection for enhanced durability against electrical disturbances. This rugged media converter guarantees stable performance in harsh environments and is ideal for factory automation, transportation, and outdoor deployments.

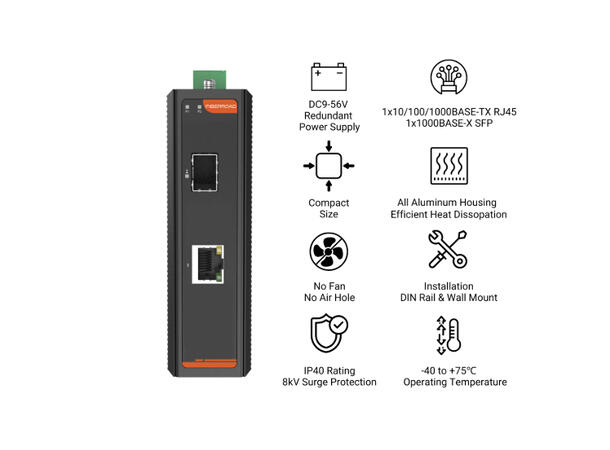

Product Features
- All-aluminum Case, Compact and Fanless Design
- 10/100Mbps or 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
- Support IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.
- Operating Temperature from -40 to 70C
- Dual Redundant DC9~56V power input
- Support power input polarity protection; no worries about the reverse connection
- Aluminium shell, fanless design
- Free fall, shock-proof and vibration-proof for industries
- Plug and play; no software configuration is needed

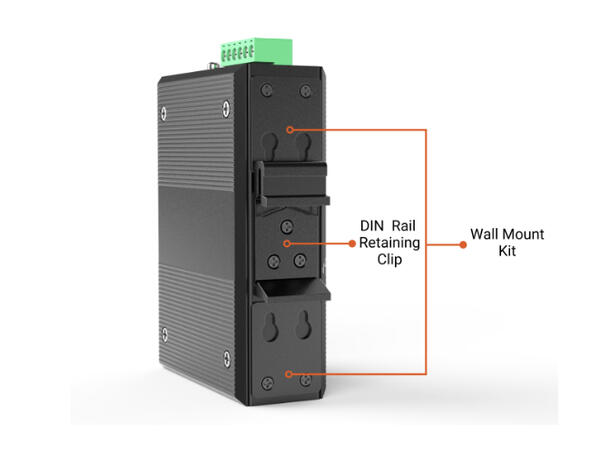

- Either DIN rail or Wall Mount Installation
- Copper Ports: 1×10/100/1000BASE-TX RJ45 Auto-MDI/MDI-X (Port 1)
- Fiber Ports: 1x1000BASE-X SFP Slot (Port 2)
- Enclosure: IP40 aluminum case
- Installation: DIN-Rail and Wall-mount
- Dimension: 120 x 90 x 35 mm
- Weight: 370g(Bare weight), 470g(With package)
- Surge Protection: ±6kV DC, ±4kV RJ45
Switching
- Switch Architecture: Store-and-Forward
- Switch Fabric: 14Gbps/non-blocking
- Forward Filter Rate: 14,880pps(10Mbps), 148,800pps(100Mbps), 1,488,000pps(1000Mbps)
- Packet Buffer Size: 512 Kbits
- MAX. Packet Length: 9K bytes
- MAC Address Table: 2K entries, automatic source address learning and aging
- Power Input: 2

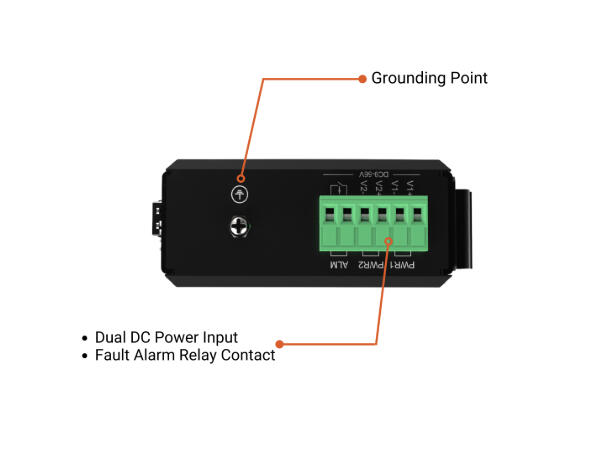

- Power Connector: 1 removable 6-contact terminal blocks, Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required)
Environmental
- Operating Temperature: -40 to +75C
- Storage Temperature: -40 to +85C
- Operating Humidity: 5%~95% (non-condensing)
- Heat Dissipation: 7 BTU/h (Non-PoE), 218 BTU/h (with 30W PoE load), 314 BTU/h (with 90W PoE load)
- Cooling: Passive Cooling
- MTBF: >500,000 hours @MIL-HDBK-217F GF 25?
