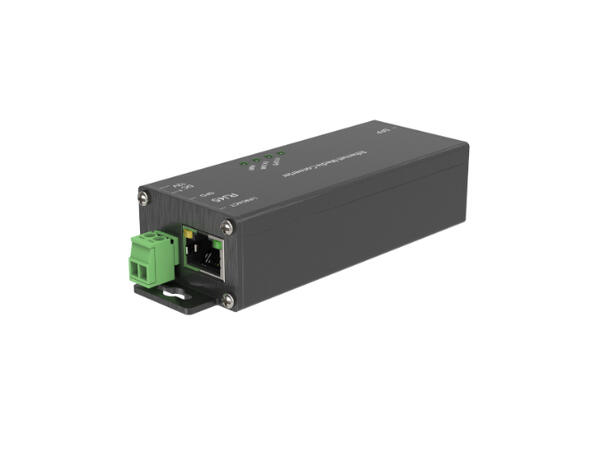

100Mb Mini Industrial Fiber Media Converter
The Mini Industrial Fiber Media Converter stands out as an exceptional solution for businesses seeking a seamless transition between Fast Ethernet and Gigabit Ethernet. It’s cost-effective, entry-level design ensures that users can effortlessly implement media conversion without the need for complex configurations. With its plug-and-play capability, setting up the converter is as simple as connecting it to your existing network infrastructure. Compact in size, this device is perfect for environments where space is at a premium, allowing you to optimize your setup without compromising on performance. Built to withstand extreme conditions, it operates efficiently within a wide temperature range of -30C to 75C and features an IP40 rugged case that protects against dust and debris. This durability makes the Mini Industrial Fiber Media Converter ideal for deployment in challenging locations like factories, transportation hubs, and outdoor settings where fluctuating temperatures are common.

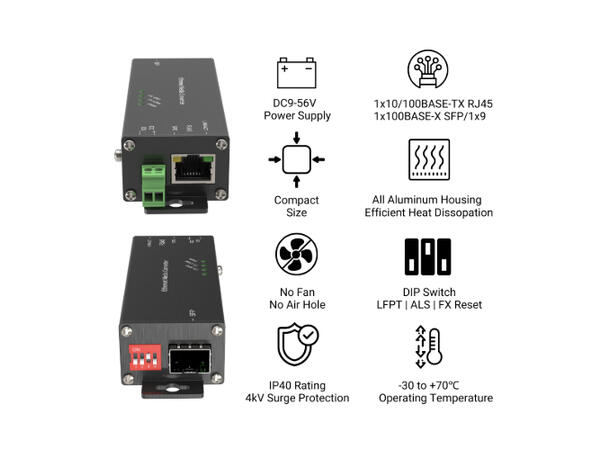

Product Features
- Compliant with IEEE 802.3u/802.3z
- Choice of SC/ST/LC SFP connector for MM & SM
- Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
- All SFP ports are multi-rate 100Mb/Gigabit – support single and multimode, - Single or dual fibre options up to 120Km
- Robust IP40 Aluminum Metal Enclosure for Harsh Environments
- Compact size – ideal for confined spaces, including camera poles and roadside cabinets.
- Operate stably under the Temperature Range of -30 or +75C
- DIP-switch to set different configuration, ex. LFP: Link Fault Pass Through
- Plug & Play – no need for any user configuration
- Both Desktop and Wall Mounting installation
Hardware Specifications

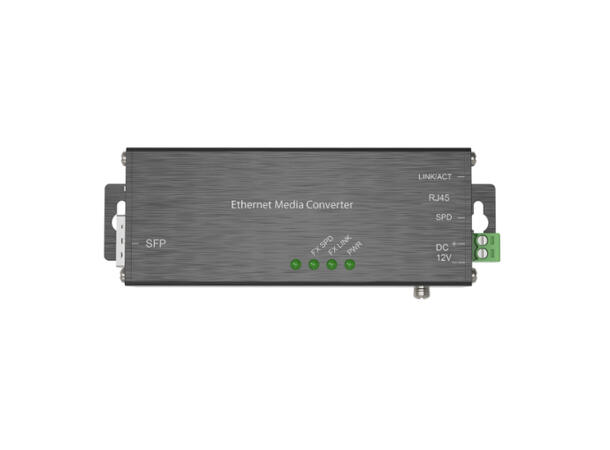

- Ports: 1×10/100Base-TX RJ45, x100Base-X SFP
- Port Mode(Tx) : Auto Negotiation Speed, Full/Half Duplex Mode, Auto MDI/MDI-X Connection
- Maximum Packet Length: Up to 10K
- Forward Filter Rate: 14,880pps(10Mbps), 148,800pps(100Mbps), 1,488,000pps(1000Mbps)
- Transmission Mode: Store and Forward (full/half duplex mode)
Transmission Distance
- Optical Fiber Port: Depends on optical module(0-160km)
- Copper RJ45 Port: 00m(using standard CAT5/CAT5e cable)
Power

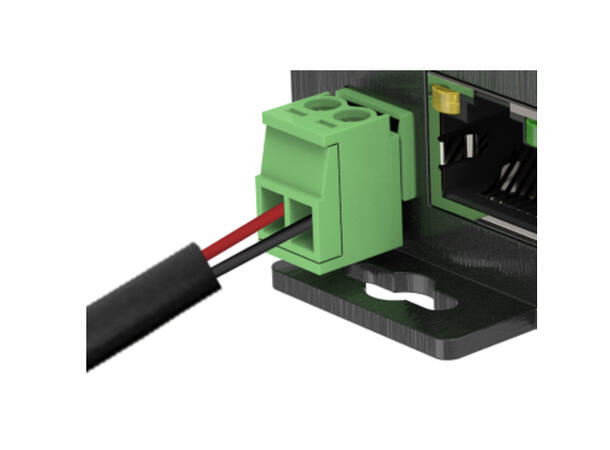

- Input Power: DC 9-56V, 0.5/0.25A
- Power Consumption: 2.4W Max. 0.2A@12VDC
Physical Characteristics
- Housing: Aluminum case
- IP Rating: IP40
- Dimensions: 36.2mm*117mm*24.5mm
- Weight: 100g(Bare weight), 250g(With package)
- Installation: Wall Mount and Desktop
Environmental
- Operating Temperature: -30 to +75C
- Operating Humidity 5%~90% (non-condensing)
- Storage Temperature: -30 to +85C
- MTBF: >500,000 hours @MIL-HDBK-217F GF 25°C
- Heat Dissipation: 7 BTU/h
- Cooling: Passive Cooling
- Noise Level: 0 dBA
