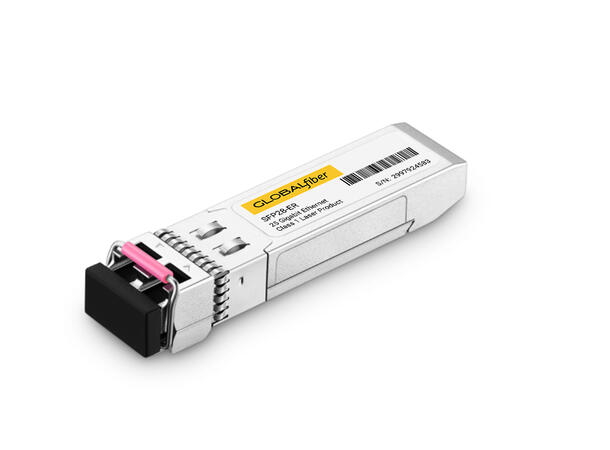

GLOBALfiber S25G-ER is a 25G SFP28 ER optical transceiver for links up to 40 km over single-mode fiber. It connects Ethernet equipment across single-mode fiber routes between network locations.
Available coding and compatibility
Available coding: Arista, Cisco, Dell, Extreme, Fortinet, Generic, H3C, HP, Huawei, Intel, Juniper, NVIDIA-Mellanox(ETH). Provide the equipment model, port configuration and software version so support can be checked. Coding does not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | S25G-ER |
|---|
| Form factor | SFP28 |
|---|
| Capacity | 25G |
|---|
| Applications | 25G Ethernet |
|---|
| Reach and fiber | 40 km over single-mode fiber |
|---|
| Nominal wavelength | 1310 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Confirm host support for the intended rate and check the optical link budget before installation.
