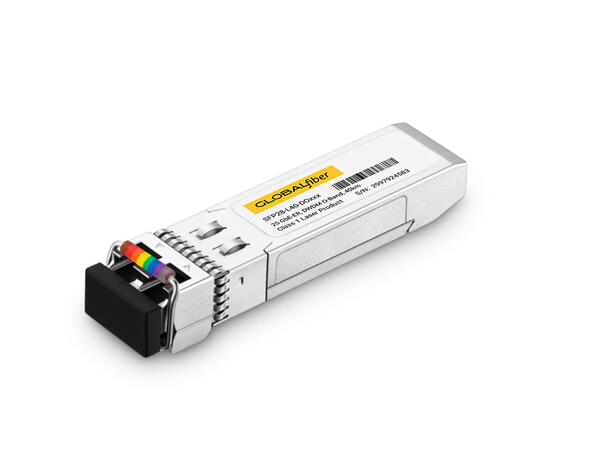

GLOBALfiber S25G-L40-DOxxx is a 25G SFP28 O-band DWDM optical transceiver for links up to 40 km over single-mode fiber. Each module uses one selected optical channel for wavelength-multiplexed Ethernet links.
Available coding and compatibility
Available coding: Arista, Cisco, Dell, Extreme, Fortinet, Generic, HP, Huawei, Intel, Juniper. Provide the equipment model, port configuration and software version so support can be checked. Coding does not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | S25G-L40-DOxxx |
|---|
| Form factor | SFP28 |
|---|
| Capacity | 25G |
|---|
| Applications | 25G Ethernet |
|---|
| Reach and fiber | 40 km over single-mode fiber |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Match the selected wavelength to the multiplexer and remote optical interface. Verify host settings and the complete optical link budget.
