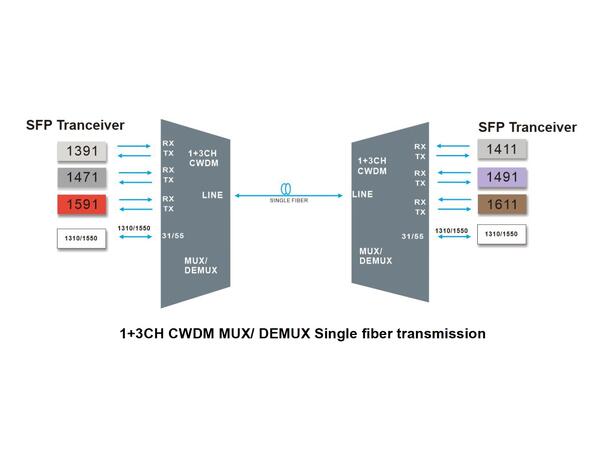

The single fiber 1channel Bidi 1310/1550nm + 3channels(6 waves) CWDM MUX DEMUX is
designed by GLOBALfiber,, A side’s waves are : RX 1391/1471/1591nm TX 1411/1491/1611nm,
and B side’s waves are: RX 1411/1491/1611nm TX 1391/1471/1591nm; it is passive CWDM device
and plug-in LGX box, can plug in 2slot 1u rack, support 4channels difference business in one optical
fiber for bi-direction point-to-point transmission.

Product Specification

- Wavelength: 1310/1550/1391/1471/1591nm, TX 1411/1491/1611nm
- Channel Passband: ±6.5nm
- Insertion Loss: = 2.0dB
- Return Loss: = 45dB Directivity = 45dB
- Polarization Mode: = 0.1ps
- Channel Isolation: Adjacent =30dB, Non-adjacent = 45dB
- Channel Spacing: 20nm
- Technology: TFF (Thin Film Filter)
- Center Wavelength Accuracy: ±0.05nm
- Directivity: = 45dB
- Polarization Dependent Loss: = 0.3dB
- Temperature: Operating -40 to 85°C, Storage -40 to 85°C

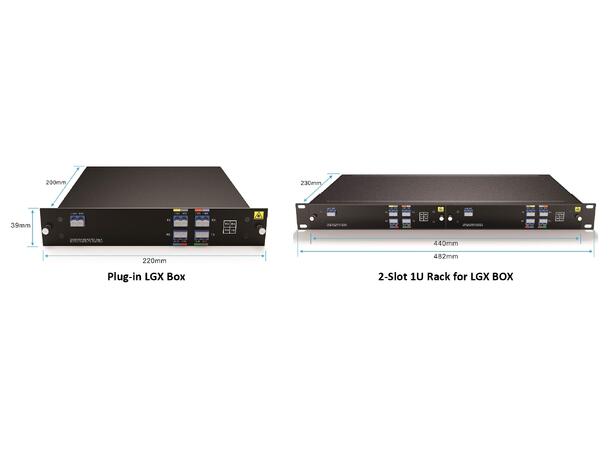

- Dimensions (HxWxD): LGX BOX 190*200*39mm
