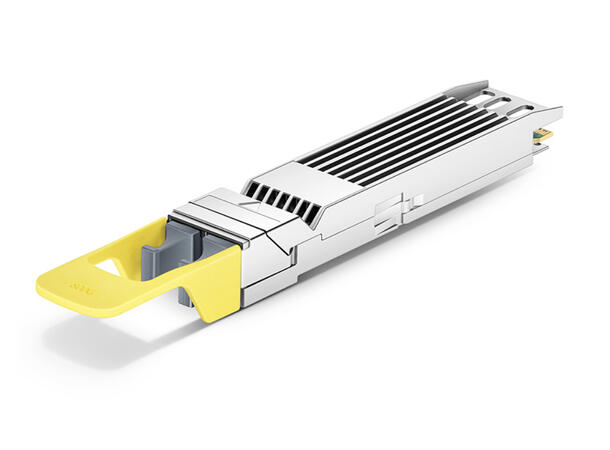

800GBASE-DR8 OSFP Ethernet Optical Transceiver Module, SMF, 1310nm, 500m, Dual MTP/MPO-12, DOM, Finned Top.

Spesifications:

- Form Factor: Twin-port OSFP Finned Top
- Max Data Rate: 850Gbps (8x 106.25Gbps)
- Wavelength: 1310nm
- Max Cable Distance: 500m

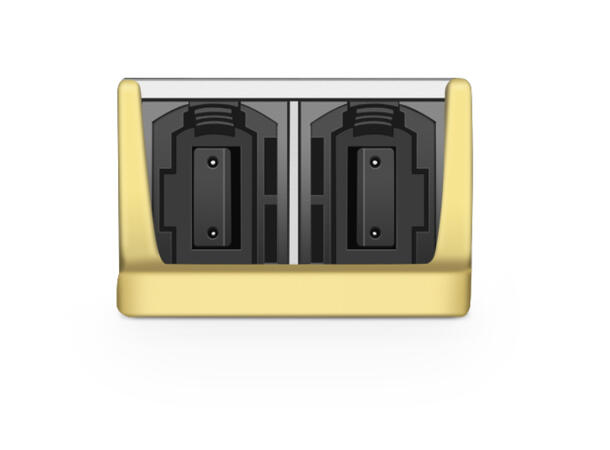

- Connector: Dual MTP/MPO-12 APC
- Media: SMF
 -Transmitter Type: EML
- Receiver Type: PIN
- TX Power: -2.9~4.0dBm
- Minimum Receiver Power: -5.9dBm
- Power Budget: 3dB
- Receiver Overload: 5dBm
- Max Power Consumption: 16.5W
- Extinction Ratio: >3.5dB
- Modulation (Electrical): 8x100G-PAM4:
- Modulation (Optical): Dual 4x100G-PAM4
- Modulation Format: PAM4
- CDR (Clock and Data Recovery): TX & RX Built-in DSP
- Inbuilt FEC: No
- Protocols: IEE802.3ck, IEEE 802.3cu, OSFP MSA
- CMIS: 5.1
- Warranty: 5 Years
