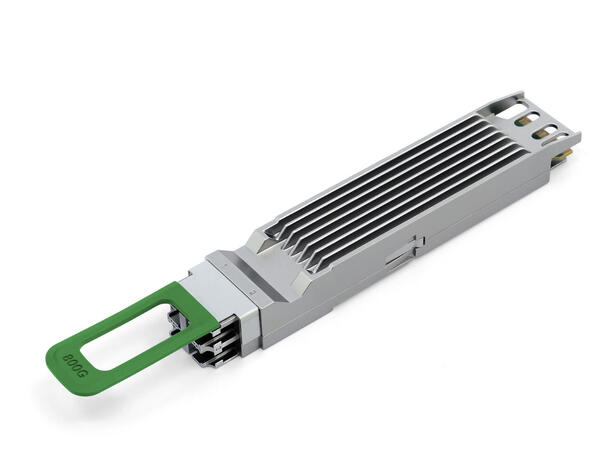

800GBASE 2x FR4 OSFP Optical Transceiver Module, SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, Dual Duplex LC, DOM, Finned Top.

Specifications:
Form Factor: Twin-port OSFP Finned Top
Max Data Rate: 850Gbps (8x 106.25Gbps)
Wavelength: 1271nm, 1291nm, 1311nm and 1331nm
Max Cable Distance: 2km
Connector: Dual Duplex LC/UPC
Media: SMF
Transmitter Type: EML
Receiver Type: PIN
TX Power: -3.2~4.4dBm
Minimum Receiver Power: -7.2dBm
Power Budget: 4dB
Receiver Overload: 4.4dBm
Max Power Consumption: 16.5W
Extinction Ratio: >3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C
Modulation (Electrical): 8x100G-PAM4
Modulation (Optical): Dual 4x100G-PAM4
Protocols: IEE802.3ck, IEEE 802.3cu, OSFP MSA

CMIS 5
Warranty: 5 Years

Application
4x200 Gb/s Ethernet
2x400 Gb/s Ethernet
