Key Features

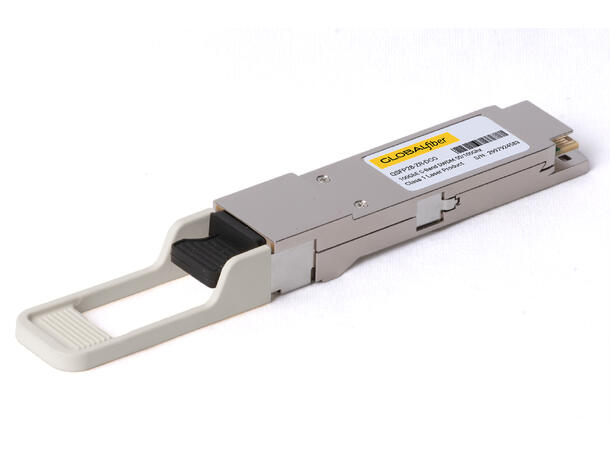

Digital Coherent Optics module, hot-pluggable QSFP28 form factor
IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface
100G optical Coherent interface with DP-DQPSK modulation and Staircase FEC per IEEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709.2

Transmission reach:
Up to 80km unamplified (loss limited)
Up to 120km amplified (dispersion limited, optionally extendable to 300km)
Full C-band tunable, 50GHz or 100GHz grid with option FlexTune™ automatic wavelength tuning
Case temperature range 0°C to 70°C
Typical module power dissipation < 5.5W
Remote digital diagnostics monitoring
TX Power: -8~-4dBm
Receiver Sensitivity: -30dBm
CMIS5


Application
Access and aggregation networks
Wireless front-haul & mid-haul
