Key Features

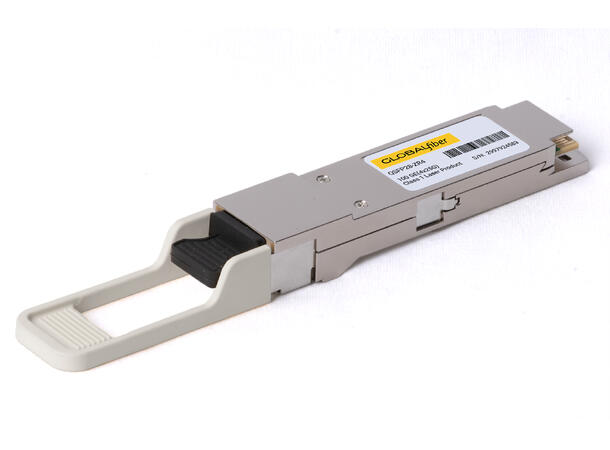

QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: -40 to 85°C
Single 3.3V power supply
RoHS 2.0 compliant
TX Power: 2~6.5dBm
RX Power: -28.0~-5dBm
Powerbudget: 30dB
Extinction Ratio: >6dB
RoHS 2.0 compliant
Application
100GBASE-ZR4 100G Ethernet
Telecom networking
