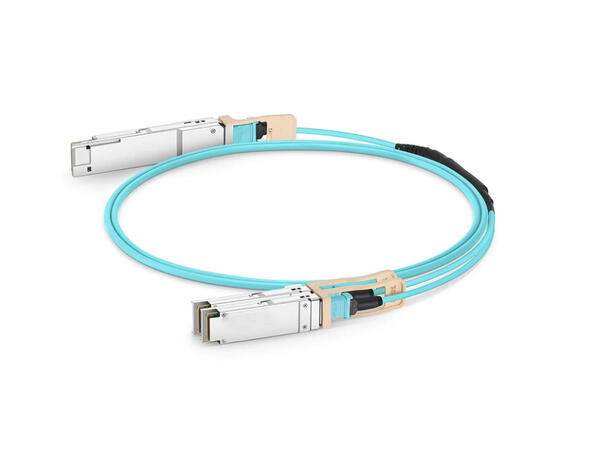

This breakout cable is compliant with IEEE 802.3, QSFP56 MSA, SFF-8024, SFF-8679, SFF-8665, SFF-8636 and InfiniBand HDR. It provides a connection of a QSFP56 200G port on one end and to two 100G QSFP56 ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.
Key Features
Hot-pluggable QSFP56 form factor full-duplex transceiver assembly
4-channel 850nm VCSEL array and PIN photo-detector array
Data rate up to 53.125Gbps (26.5625GBd PAM4) per channel
200GAUI-4/100GAUI-2 electrical interfaces
Compliant with QSFP56 MSA, CMIS 4.0 and IEEE 802.3cd 200GBASE-SR4
Compliant with IEEE 802.3cd 100GBASE-SR2 and InfiniBand HDR/HDR100
Built-in 4x50G/2x50G PAM4 DSP
MMF cable with customizable length up to 70m (OM3) or 100m (OM4/OM5)
5W maximum power dissipation per 200G QSFP56 SR4 module
4.5W maximum power dissipation per 100G QSFP56 SR2 module
Commercial Temperature Range 0 to 70°C
Single 3.3V power supply
Built-in digital diagnostic functionality
Transmitter Type: VCSEL
Receiver Type: PIN
CDR (Clock and Data Recovery)TX & RX Built-in CDR
Protocols: IEEE 802.3, QSFP56 MSA, SFF-8024, SFF-8679, SFF-8665, and SFF-8636, InfiniBand HDR
RoHS compliant
Application
200G Ethernet IEEE 802.3cd 200GBASE-SR4
100G Ethernet IEEE 802.3cd 100GBASE-SR2
InfiniBand 2x EDR100, HDR
Data Center Intraconnection
High-Performance Computing
