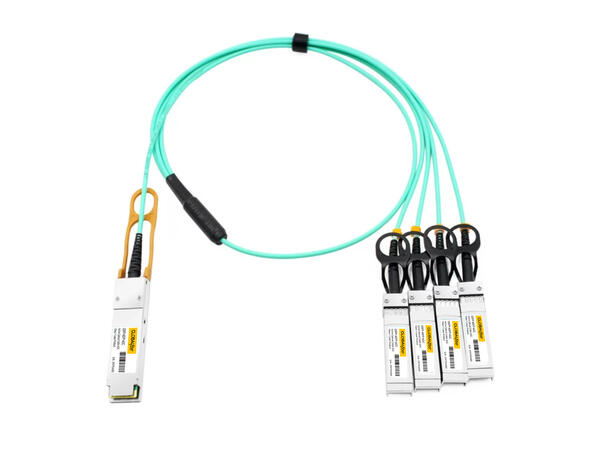

40G QSFP+ to 4x 10G SFP+ Breakout AOC (Active Optical Cable) assemblies are designed to support 40G/4x10G Ethernet and InfiniBand 4x SDR/DDR/QDR, suitable for data center and HPC (High-Performance Computing) links up to 100m over multi-mode fiber.


Key Features
Hot-pluggable QSFP+/SFP+ form factor full-duplex active optical cable assembly
4-channel 850nm VCSEL and PIN photo-detector
Data rate up to 10.3125Gbps per channel
MMF cable with customizable length up to 100m (OM3)
1.5W maximum power dissipation per 40G QSFP+ SR4 module
0.8W maximum power dissipation per 10G SFP+ SR module
Case operating case temperature range: C-Temp or I-Temp
3.3V power supply voltage
Built-in digital diagnostic functionality
RoHS compliant

Application
40G Ethernet IEEE 802.3ba 40GBASE-SR4
10G Ethernet IEEE 802.3ae 10GBASE-SR
InfiniBand
Data Center Intraconnection
