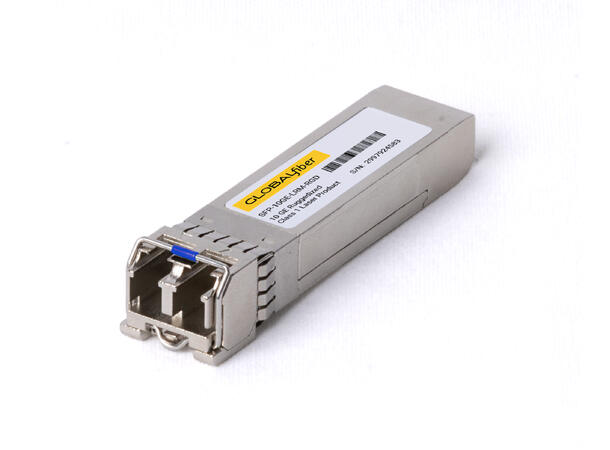

SFP+, 10GE, DDM, 220m, I-Temp

1310nm, 3.4dB, MM, requires EDC

Varenr:S10G-LRM-I

Koding

Cisco

Generic

Teknisk info

Key Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm FP laser and PIN photodiode, Up to 220m for MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Industrial: -40 to +85°C
TX Power: -6.5~-0.5dBm
Receiver Sensitivity: < -10.0dBm

Application
10Gbps Optical systems
10GBASE-LRM at 10.3125Gbps
Other Optical links

Tilbehør

Datablad

10G ETHERNET I-TEMP FAMILY.pdf
