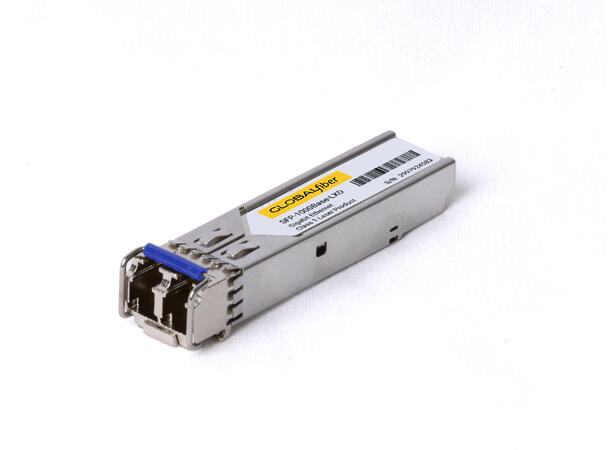

Key Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photo detector for 10km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
TX Power: -9.5 ~ -3dBm
Receiver Sensitivity: < -20dBm
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
