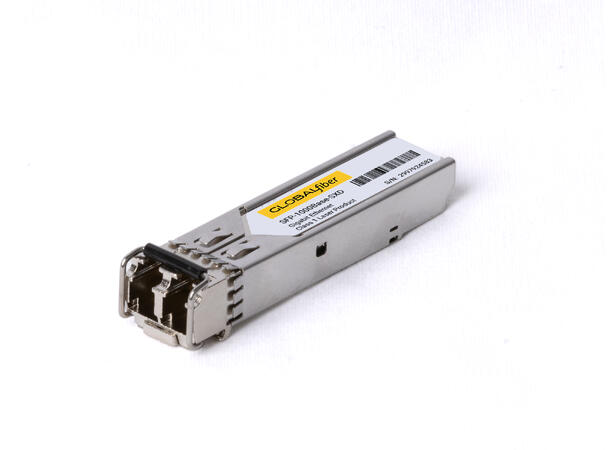

Key Features
Data-rate of 1.25Gbps operation
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
500m transmission with 50/125µm MMF
300m transmission with 62.5/125µm MMF
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
TX Power: -9~-3dBm
Receiver Sensitivity: <-18dBm
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
