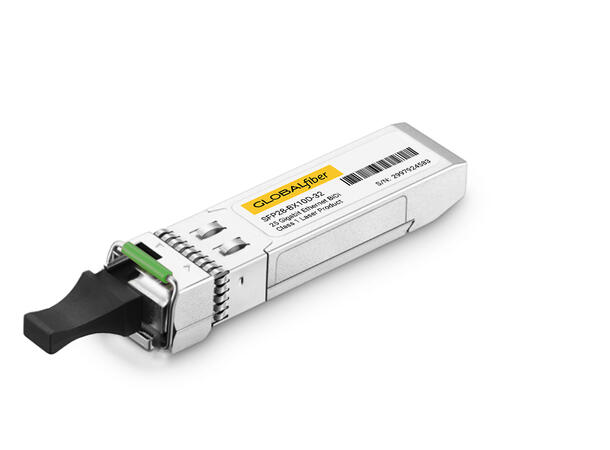

SFP28, BiDi, 25GbE, DDM, SM, 10km Tx/Rx=1330/1270nm, 9dB

SFP28, BiDi, 25GbE, DDM, SM, 10km

Tx/Rx=1330/1270nm, 9dB

Varenr:S25G-BX10D-32
Teknisk infoDatablad
Teknisk info
Key Features
Supports up to 25.78Gbps bit rates
Hot-pluggable SFP+ footprint
1330nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
TX Power: -4.0~+4dBm
Receiver Sensitivity: < -13.3dBm
Powerbudget: 9dB

Application
25GBASE-LR
Datablad
Datablad_SFP28-25G-BX10D-32.pdf
