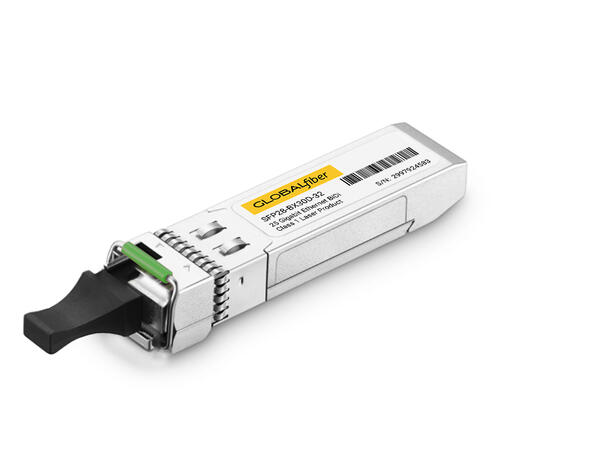

GLOBALfiber S25G-BX30D-32 is a 25G SFP28 BiDi optical transceiver for links up to 30 km over single-mode fiber. Its bidirectional optical interface supports Ethernet links with different transmit and receive wavelengths.
Available coding and compatibility
Available coding: Arista, Cisco, Dell, Extreme, Fortinet, Generic, H3C, HP, Huawei, IBM, Infinera, Intel, Juniper, NVIDIA-Mellanox(ETH), Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding does not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | S25G-BX30D-32 |
|---|
| Form factor | SFP28 |
|---|
| Capacity | 25G |
|---|
| Applications | 25G Ethernet |
|---|
| Reach and fiber | 30 km over single-mode fiber |
|---|
| TX wavelength | 1330 nm |
|---|
| RX wavelength | 1270 nm |
|---|
| Optical connectors | Simplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Match the remote optic to complementary TX/RX wavelengths and the required reach. Check received power and the complete optical link budget before installation.
