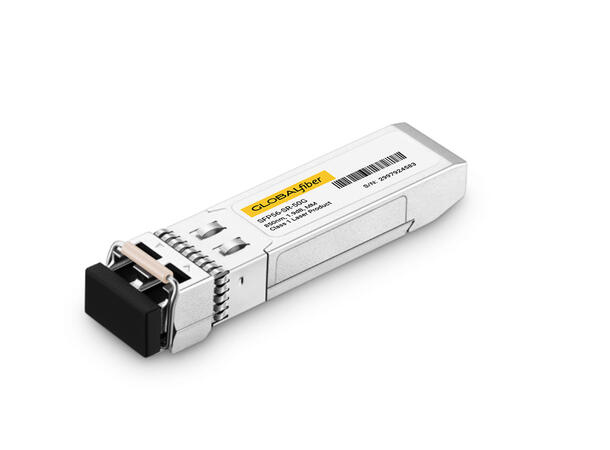

SFP56, 50 GbE-SR, DDM, 100m

850nm, 1.9dB, MM

Varenr:S50G-SR

Koding

Generic

Juniper

Teknisk info

Key Features

Operating Data Rate up to 53.125Gbps (26.5625GBd PAM4)
850nm VCSEL Transmitter
Distance up to 100m @50/125µm OM4
Distance up to 70m @50/125µm OM3
Single 3.3V Power Supply
Duplex LC Connector Interface, Hot Pluggable
Built-in Re-timer, DSP Based
Power Dissipation < TBD
Operating Case Temperature Standard: 0?~+70?
TX Power: -6.5~4dBm
Receiver Sensitivity: <-8.4dBm
Safety Certification: TUV/UL/FDA*Note1
RoHS Compliant

Application

IEEE 802.3cd 50GBASE-SR
